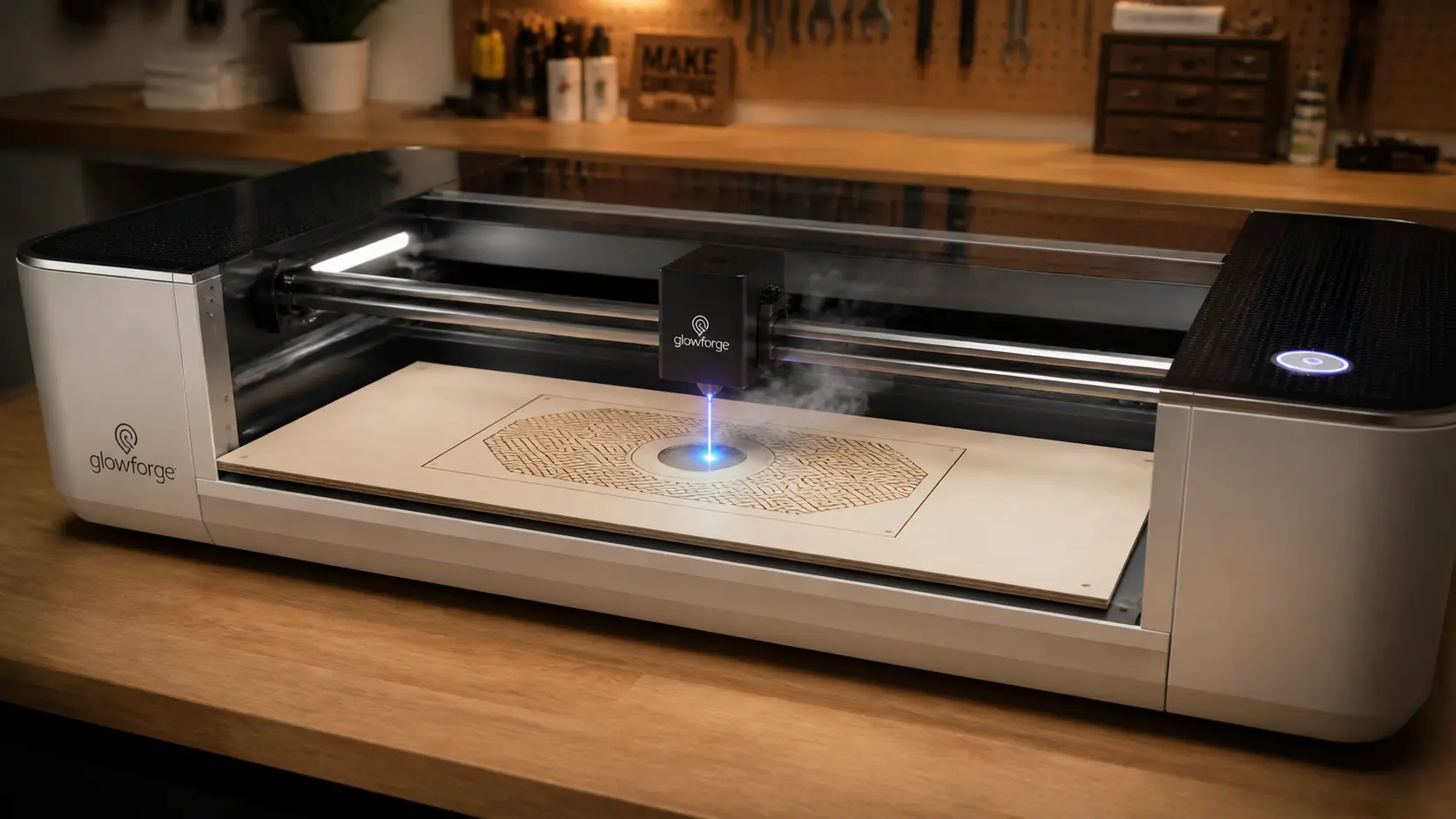

Glowforge Pro 45W Basswood Settings 3mm: Cut at 22 mm/s
The Glowforge Pro 45W cuts 3mm basswood at 22 mm/s with 80% power in a single pass, producing clean, void-free results every time. This guide gives you the exact settings, troubleshooting steps, and material sourcing to master basswood on your Pro machine.
By Mike Dolan ·
| Material | Engraving Contrast | Cut Ease | Smoke / Odor | Cost | Beginner Score |
|---|---|---|---|---|---|
| Basswood (3 mm) | ★★★★★ | Excellent — 1 pass | Low | $ | ★★★★★ |
| Baltic Birch Plywood | ★★★★ | Good — 2–3 passes | Medium | $$ | ★★★★ |
| MDF | ★★★ | Good — 1–2 passes | High (formaldehyde) | $ | ★★ |
| Pine / Soft Plywood | ★★★ | Poor — resin deposits | Medium-High | $ | ★★ |
Why Is Basswood the Best Wood for the Glowforge Pro?
The Glowforge Pro’s enclosed CO2 laser is engineered for precision, and basswood’s uniform cellular structure lets it perform at its best — clean single-pass cuts, crisp engraved detail, and a workspace that stays cleaner between jobs. Whether you’re running a short prototype or a 12-sheet production batch, basswood responds predictably to the Pro’s 45W tube every time.
- Low resin content — basswood produces minimal sticky residue during cutting, keeping the Pro’s enclosed optics and lens cleaner between sessions and reducing maintenance frequency
- Consistent density — the same settings work batch after batch without retuning; void-free laser-grade sheets eliminate the power spikes that cause incomplete cuts
- Minimal char — produces clean cut edges with air assist enabled, leaving pale ivory faces and warm brown edges rather than scorched, blackened lines
- Light, workable surface — easy to sand, paint, or stain after cutting, making it ideal for ornaments, signage, jewelry, and decorative panels that need finishing
- No toxic fumes — unlike MDF or treated plywood, basswood contains no formaldehyde binders or chemical coatings, making it safe for indoor use with the Pro’s built-in filtered exhaust or a basic external vent
What Are the Best Glowforge Pro Settings for 3mm Basswood?
All settings below are for Crafteker 3mm basswood sheets (12×12 inch, laser-grade). Use the Laser Settings Calculator to fine-tune for your specific unit if results differ.
| Machine | Cut Speed | Cut Power | Passes | Engrave Speed | Engrave Power | Air Assist |
|---|---|---|---|---|---|---|
| Glowforge Pro 45W | 22 mm/s | 80% | 1 pass | 300 mm/s | 30% | Auto (enabled) |
Note: Air assist is strongly recommended for the Glowforge Pro. The Pro’s enclosed design traps combustion byproducts near the cut zone, and auto air assist actively clears smoke and debris from the kerf to protect the lens and maintain consistent beam delivery through the full cut. Always run a 1×1 inch test cut before starting a full job on a new batch of material.
The Crafteker 12-pack basswood sheets are purpose-built for enclosed CO2 lasers like the Glowforge Pro — 12×12 inch, 3mm, laser-grade, void-free. $24.99 for 12 sheets ($2.08/sheet).
How Do I Get Clean Cuts on the Glowforge Pro? Step-by-Step
Clean cuts on the Glowforge Pro come down to three things: accurate focus, consistent air assist, and flat material. Follow these steps for reliable results:
- Set focus accurately. The Glowforge Pro uses autofocus via its built-in camera system — set your material thickness to 3mm (0.118 in) in the app before printing. If your sheet has any surface variation, use the Set Focus tool to click directly on your cut area and let the laser head measure the exact height before the job begins.
- Enable auto air assist. The Glowforge Pro’s air assist is built in and activates automatically when a print job starts — confirm it is not disabled in your print settings. Running without air assist on an enclosed machine allows smoke to linger at the focal point, reducing effective power and leaving charred, uneven kerf edges.
- Secure the basswood flat. Place the sheet directly on the crumb tray and use Glowforge’s honeycomb hold-down pins or small rare-earth magnets at the corners to eliminate any bow or warp before printing.
- Run a test cut first. Cut a small square or circle from a corner of the sheet before the full job. This confirms focus and power before you commit the whole sheet.
- Do not increase passes to compensate for failed cuts. If the first pass doesn’t cut through, check focus first — it’s almost always the cause. Extra passes at wrong focus just char the edges.
- Clean the lens every 3–5 hours. Access the Glowforge Pro’s lens by removing the laser head and using the magnetic tool included with the machine to extract the lens. Even a thin film of basswood residue causes 10–20% power loss. Use a Zeiss lens wipe or IPA on a lint-free cotton swab and allow it to dry fully before reinserting.
How Does the Glowforge Pro Compare to Other Lasers for Basswood?
The Glowforge Pro’s 45W CO2 laser cuts 3mm basswood at 22 mm/s in a single pass — faster and cleaner than the Glowforge Plus 40W, which typically requires dropping to around 17–18 mm/s to achieve a full cut at comparable power settings. The xTool M1 50W diode-hybrid laser can match or exceed that speed on paper, but diode lasers produce more char on basswood than CO2 systems and often require a second pass to clear the kerf cleanly. For Etsy sellers and batch cutters running production volumes, the Glowforge Pro’s 45W CO2 output is the sweet spot: fast enough to cut dozens of pieces per session, with the enclosed design and auto air assist keeping results consistent sheet after sheet without operator intervention.
Why Isn’t My Glowforge Pro Cutting Through Basswood Cleanly?
Most incomplete cuts and excessive charring on the Glowforge Pro trace back to these four issues:
- Focus is off: Use the Glowforge’s Set Focus tool before every job — click the target on your material in the app and let the machine measure the exact surface height automatically before the cut begins.
- Air assist not running: Without active air flow, smoke and char re-deposit in the kerf as the laser cuts, blocking the beam. On the Glowforge Pro, confirm the air assist nozzle on the laser head is unobstructed and that the machine’s internal fan is running at full speed before starting your job.
- Inconsistent material: Craft-store plywood has glue pockets and variable density. Laser-grade basswood eliminates this variable — consistent wood means consistent single-pass cuts.
- Dirty lens: Clean the Glowforge Pro’s lens after every 3–4 hours of cutting time — remove the lens using the magnetic tool, then wipe both surfaces gently with a fresh IPA-dampened Zeiss wipe or lint-free cotton swab until the lens is clear and smear-free.
Where to Buy Basswood Sheets for the Glowforge Pro

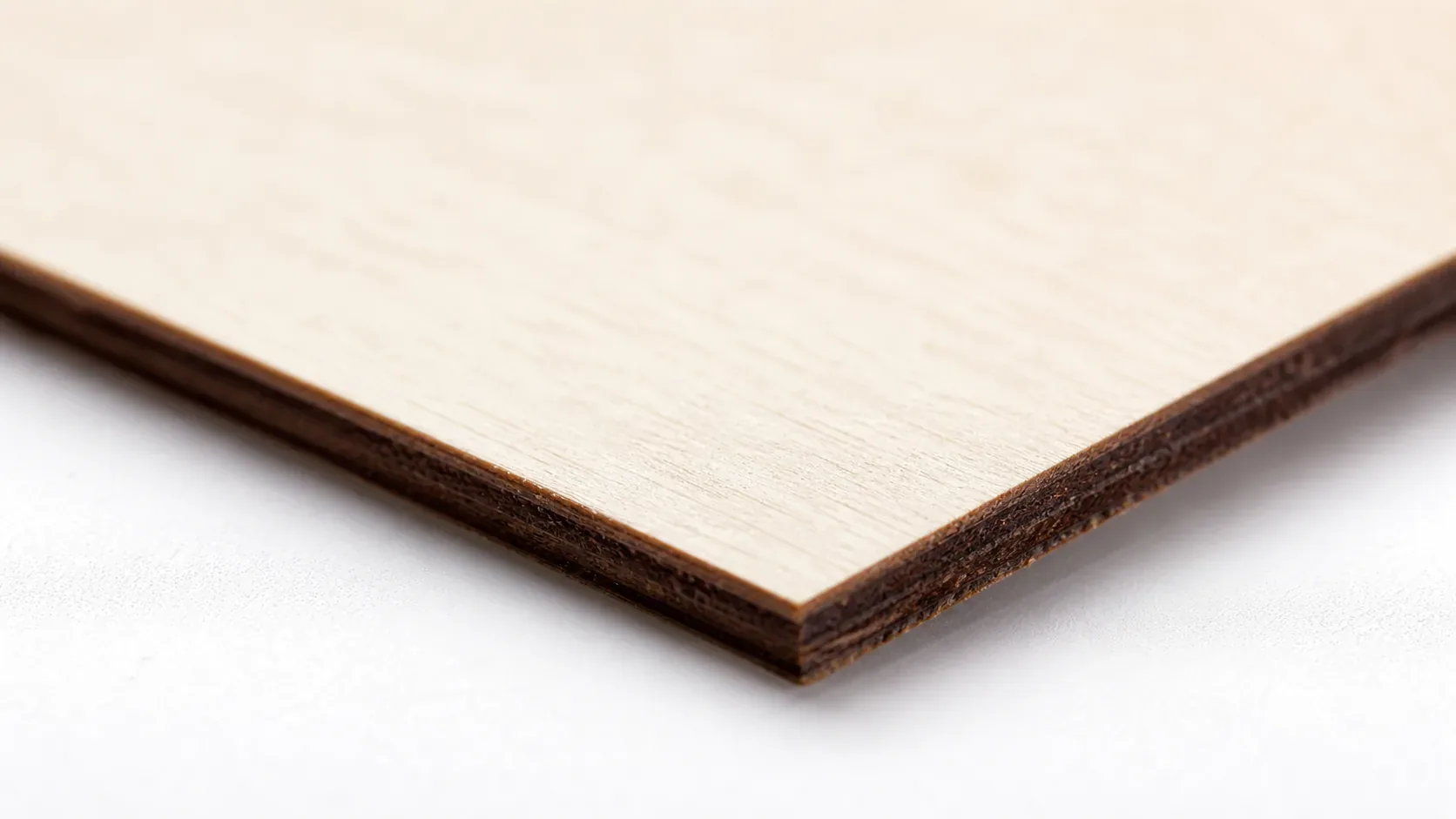

Crafteker 3mm basswood sheets are the best match for the Glowforge Pro — 12×12 inch, laser-grade, void-free, and pre-sanded. At $24.99 for 12 sheets ($2.08/sheet), it’s the most cost-effective option for consistent single-pass results. The uniform quality means the settings in this guide work reliably without re-tuning every batch.
Ready to cut? Get the wood that works with these settings:
→ Buy Crafteker 12-Pack Basswood Sheets on Amazon – $24.99
Clip the 7% coupon on the listing page – buy 2 packs and save 20% automatically.
Also available: 5-pack ($15.97) · 3-pack ($12.99)
Frequently Asked Questions
What are the best Glowforge Pro settings for 3mm basswood?
Cut speed 22 mm/s at 80% power for a single pass. Engrave speed 300 mm/s at 30% power. Use auto air assist. Clean cuts with zero char at these settings on void-free, laser-grade basswood.
Is Glowforge Pro good for cutting basswood?
Yes. The Pro’s 45W CO2 laser delivers enough power to cut 3mm basswood in one pass without multiple passes or power spikes. The enclosed design minimizes fume issues and gives you consistent results.
What is the best wood for the Glowforge Pro laser?
3mm laser-grade basswood. It has low resin content so it cuts cleanly with minimal char, and void-free sheets ensure consistent density. Crafteker’s 3mm basswood is $2.08/sheet in bulk (12-pack), ideal for production runs.
Can Glowforge Pro cut 3mm basswood in one pass?
Yes. Run 22 mm/s at 80% power with auto air assist enabled. The 45W CO2 laser cuts through 3mm void-free basswood cleanly in a single pass, saving production time.
Where can I buy basswood sheets for the Glowforge Pro?
Crafteker on Amazon: 3-pack $12.99, 5-pack $15.97, 12-pack $24.99 ($2.08/sheet). The 12-pack offers the best value for regular users and production runs. All sheets are 12×12 inch, 3mm, laser-grade, void-free.
About the author: Mike Dolan is a laser maker and wood materials specialist with 8+ years cutting basswood, birch, and MDF on diode and CO₂ machines. He tests every Crafteker basswood batch before listing.
Been running these exact settings on my Pro for six months now — 22 mm/s and 80% power cuts through Crafteker’s 3mm basswood perfectly clean in one pass every single time. No charring, no need to fiddle with power levels. The void-free quality is what makes the difference; regular plywood would need adjustments.
