Layered Wood Wall Art: Laser Cut Settings & Designs (2026)

Layered wood wall art is one of the highest-earning laser projects on Etsy in 2026 — pieces sell for $35–90 each, material cost per piece runs $7–15, and the assembly time is under 30 minutes once you have the layers cut. This guide covers the exact basswood settings for cutting each layer, the best design categories that sell consistently, how to assemble the depth effect, and how to price your work for maximum margin.

By Mike Dolan · May 1, 2026

Why Basswood Is the Best Wood for Layered Wall Art

Layered wall art works by stacking separate cut pieces with small gaps between them. The wood needs to be light, dimensionally stable, and visually consistent across layers. Basswood checks all three:

• Lightweight — a 12×12 inch, 3-layer basswood piece weighs under 180g, allowing wall mounting with simple adhesive strips or a small nail
• Consistent color — all sheets from the same batch have matching cream tone, so layers blend visually without obvious color variation
• Clean cut edges — minimal char on the cut edges means you can paint or stain layers without sanding prep and the edges read as intentional detail
• Rigid at 3mm — doesn’t bow or warp when spaced away from the backing layer, keeping the depth effect consistent across the whole piece
• Takes paint cleanly — layers can be painted different colors before assembly for a dramatic multi-tone effect; basswood accepts acrylic paint in a single coat

Laser Settings for Cutting Layered Wood Wall Art

All settings below are for Crafteker 3mm basswood sheets. These settings apply to all major 10W and 20W diode lasers. Use the same profile for every layer — consistency in cut speed and power keeps kerf width uniform across layers, which is important for tight-fitting edge joints.

The Crafteker 12-pack basswood sheets are the most cost-effective option for layered art — 12×12 inch, 3mm, laser-grade, void-free. $24.99 for 12 sheets ($2.08/sheet). A 3-layer 12×12 piece uses 3 sheets, costing $6.75 in materials.

How to Make Layered Wood Wall Art: Step-by-Step

1. Design each layer separately in Inkscape or LightBurn. Stack your design visually: the back layer is the largest silhouette, each forward layer is a smaller or more detailed element. Use 0.2mm offset between layers on shared edges for clean separation after assembly.
2. Keep layer count to 3–4 for beginners. Three layers — background, midground, foreground — give strong depth with minimal alignment complexity. A mountain range: back layer = full mountain silhouette, mid layer = middle peaks, front layer = foreground trees.
3. Cut all layers from the same batch of sheets. Sheets from the same pack have matching color and thickness. Mixing batches creates visible color and height differences between layers.
4. Paint or stain layers before assembly. It’s much easier to paint individual flat layers than an assembled 3D piece. Use acrylic craft paint in a single thin coat. Let dry for 2 hours before assembly. Leave the back layer its natural wood color for a warm base tone.

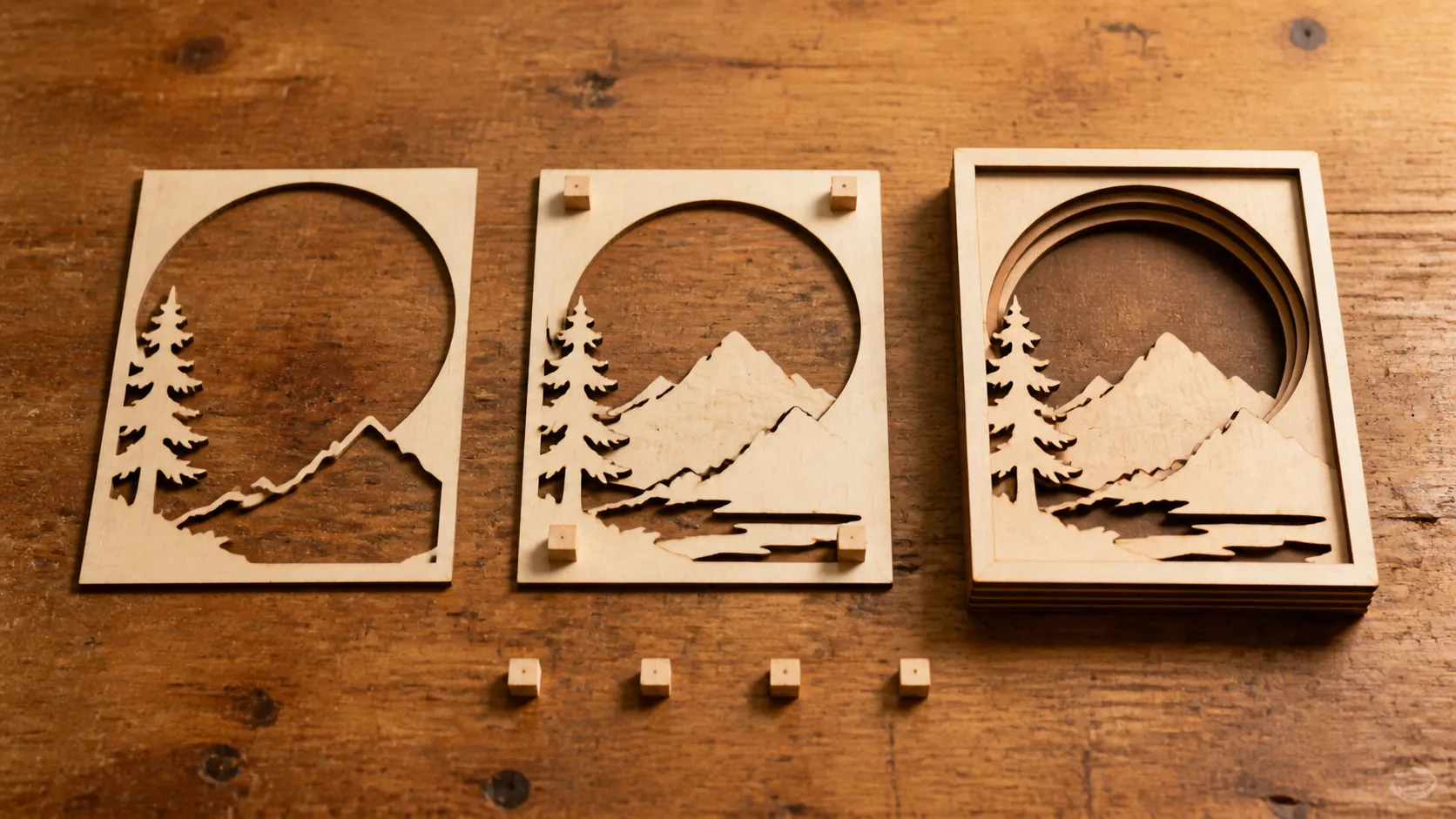

5. Create spacers for depth effect. Cut small squares (12×12mm) from basswood scrap to use as spacers between layers. A single 3mm spacer creates 3mm of depth — enough for visible shadow at normal viewing distance. Use 2 stacked spacers (6mm) for more dramatic shadow.
6. Assemble back-to-front. Glue spacers to the back of the front layer first. Let cure for 20 minutes, then attach that layer to the midground layer. Repeat back-to-front. This is easier than trying to glue front-to-back and keeps alignment controlled.
7. Add mounting hardware to the back layer. A sawtooth picture hanger (for small pieces) or French cleat strip (for large pieces over 300g) keeps the piece level and secure. Test the hang before shipping by loading the hanger with weight equal to the finished piece.

Best Layered Wood Wall Art Designs That Sell on Etsy

Design selection is the biggest factor in Etsy conversion for wall art. These themes have consistent demand and low competition in the laser wood category:

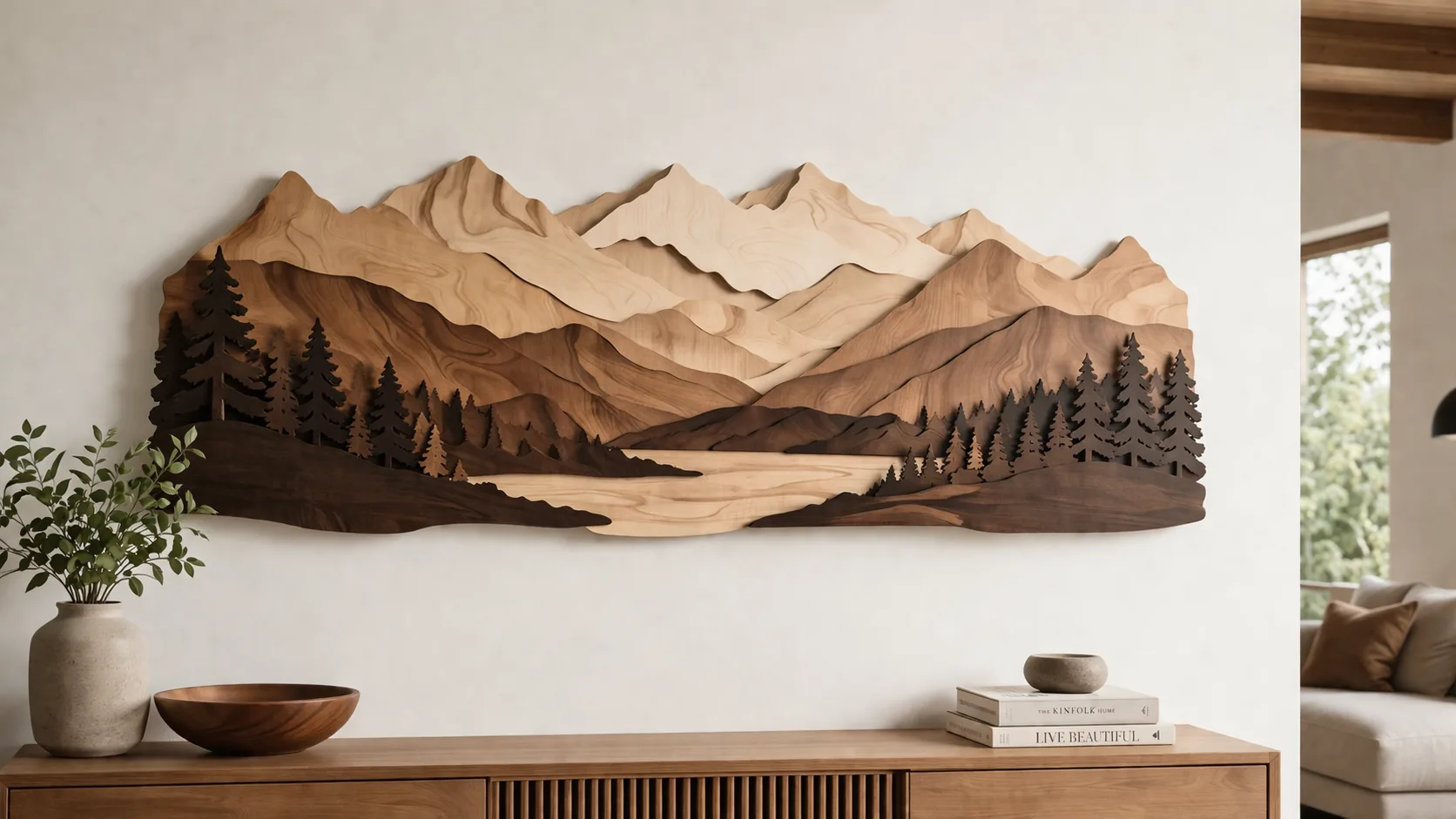

• Mountain landscapes — the most popular layered wood art category on Etsy. Silhouette layers of peaks at different distances create immediate visual depth. Offer as a standalone or with “Adventure Awaits” or family name text on the front layer.
• Forest silhouettes — trees in layers of decreasing density from back to front. Easy to design from stock SVGs. Works well in both natural wood tone and with painted layers (dark back, lighter front).
• Family name signs — back layer is a large serif name, front layer is a decorative frame or wreath element. These are personalized, high-margin, and gift-driven — ideal for holiday and wedding season spikes.
• State shapes — a US state outline in 3 layers: full fill back, state border mid, hometown star or heart front. Permanent demand from state-pride buyers and transplants.
• Botanical / floral — overlapping leaf and flower silhouettes in 3–4 layers. High visual complexity from simple shapes. Works well in all-natural wood or with a single pop of color on the front layer.
• Cityscape skylines — cut the skyline as 2–3 layers at different heights. Popular for housewarming and relocation gifts. Offer as city-specific or custom (take a photo of any skyline).

How to Price Layered Wood Wall Art on Etsy

Material cost for a 3-layer 12×12 inch piece: 3 sheets × $2.25 = $6.75 + spacers/hardware $0.50 + paint $0.30 = ~$7.55. Assembly time: 25–40 minutes. Packaging (cardboard mailer): $1.50. Suggested retail pricing:

Offer free personalization (name or short text on the front layer) as a default option rather than an upsell. Etsy’s algorithm favors listings with personalization options in the home decor category — this consistently lifts click-through rate from search.

Where to Buy Basswood Sheets for Layered Wall Art

Crafteker 3mm basswood sheets are the best choice for layered wall art — laser-grade, void-free, consistent color across every sheet in the pack. At $24.99 for 12 sheets ($2.08/sheet), a 12-pack gives you enough material for 4 complete 3-layer 12×12 pieces plus offcuts for spacers and test cuts.

Frequently Asked Questions

How many layers do I need for layered wood wall art?

Most layered wood wall art uses 3 to 5 layers. Three layers give a clean foreground/midground/background separation. Five layers create a more dramatic depth effect. More than 5 layers increases production time significantly without proportional visual impact.

What basswood thickness is best for layered wood wall art?

3mm basswood is the standard choice for each layer of a wall art piece. It’s rigid enough to hold its shape when glued or spaced, light enough for wall mounting without heavy hardware, and cuts cleanly on 10W and 20W diode lasers in a single pass.

What laser settings do I use for layered wood wall art on a 10W diode laser?

For cutting 3mm basswood layers: 5 mm/s, 100% power, 1 pass with air assist. For engraving texture or detail into a layer: 120 mm/s, 30% power. Use the same settings for every layer — basswood consistency means they’ll match.

How do I assemble layered wood wall art?

Stack layers from back to front. Use 3mm spacers (small squares of scrap wood or laser-cut standoffs) between each layer to create depth and shadow. Glue spacers to the back of each layer with wood glue, let dry fully, then attach layers sequentially. Mount the finished piece with a French cleat or sawtooth hanger on the back layer.

How much does layered wood wall art sell for on Etsy?

Small layered pieces (8×8 inch, 3 layers) sell for $28–45. Medium pieces (12×12 inch, 3–4 layers) sell for $45–65. Large statement pieces (16×20 inch, 4–5 layers) sell for $65–90. Personalized pieces (family name, coordinates) command a $15–25 premium.

About the author: Mike Dolan is a laser maker and wood materials specialist with 8+ years cutting basswood, birch, and MDF on diode and CO₂ machines. He tests every Crafteker basswood batch before listing.
