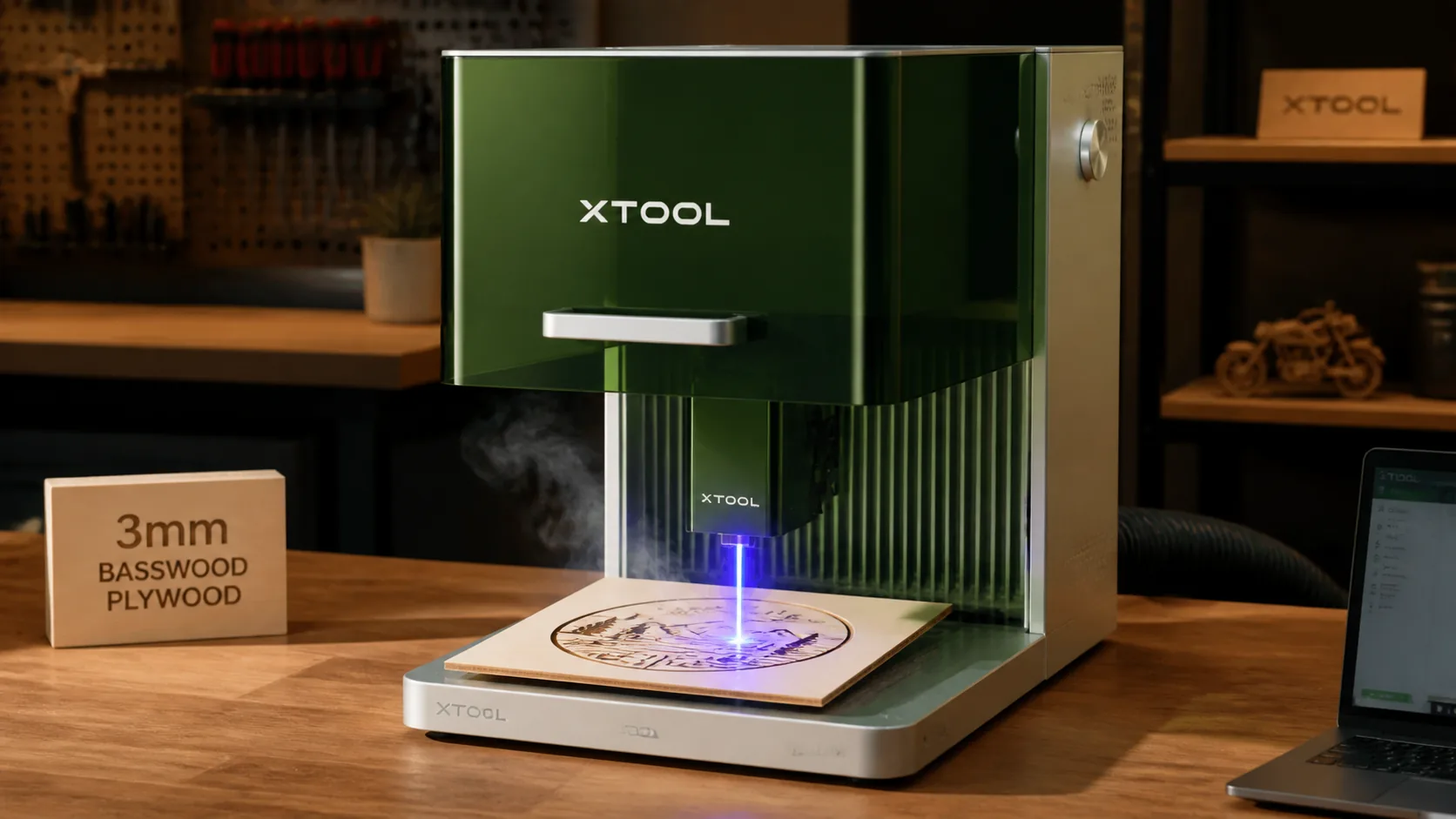

xTool F1 Basswood Settings 3mm | Laser Cut Guide 2026
The optimal xTool F1 cutting speed for Crafteker 3mm basswood is 5 mm/s at 100% power in a single pass with air assist recommended. This guide covers the exact settings, step-by-step cutting techniques, and proven solutions to eliminate incomplete cuts and charring.
By Mike Dolan ·
| Material | Engraving Contrast | Cut Ease | Smoke / Odor | Cost | Beginner Score |
|---|---|---|---|---|---|
| Basswood (3 mm) | ★★★★★ | Excellent — 1 pass | Low | $ | ★★★★★ |
| Baltic Birch Plywood | ★★★★ | Good — 2–3 passes | Medium | $$ | ★★★★ |
| MDF | ★★★ | Good — 1–2 passes | High (formaldehyde) | $ | ★★ |
| Pine / Soft Plywood | ★★★ | Poor — resin deposits | Medium-High | $ | ★★ |
Why Is Basswood the Best Wood for the xTool F1?
The xTool F1’s 10W diode laser performs best with materials that absorb energy efficiently and produce minimal combustion byproducts — and 3mm basswood checks every box. Its open-frame design makes low-smoke, low-resin material especially important, since airborne residue reaches the lens faster than in an enclosed unit, degrading output power over time.
- Low resin content — produces minimal smoke during cutting, protecting the xTool F1’s exposed diode lens from residue buildup and extending time between cleanings
- Consistent density — the same settings work batch after batch without retuning, which is critical for the F1’s fixed-focus diode optics
- Minimal char — laser-grade basswood plywood produces clean cut edges with pale, tight kerf lines when air assist is enabled
- Exceptional engraving surface — the pale ivory face accepts fine engraved detail with sharp contrast, making it ideal for decorative and sellable work straight off the machine
- No toxic fumes — unlike MDF or resin-treated plywood, basswood is safe for indoor use with basic ventilation, an important consideration for a portable desktop laser like the x
What Are the Best xTool F1 Settings for 3mm Basswood?
All settings below are for Crafteker 3mm basswood sheets (12×12 inch, laser-grade). Use the Laser Settings Calculator to fine-tune for your specific unit if results differ.
Machine Cut Speed Cut Power Passes Engrave Speed Engrave Power Air Assist xTool F1 (Diode 10W) 5 mm/s 100% 1 pass 150 mm/s 30% Recommended Note: Air assist is strongly recommended for the xTool F1. Because the F1 uses an open-frame diode module, smoke and resin vapor settle directly on the lens during a cut — air assist clears combustion gases away from the beam path in real time, protecting the lens and keeping laser output at full rated power. Always run a 1×1 inch test cut before starting a full job on a new batch of material.
Crafteker 3mm basswood is one of the few materials where the xTool F1 achieves a true single-pass cut at these settings. Other wood suppliers with inconsistent core density or residual moisture often require a second pass, which widens the kerf and introduces additional charring on the face. With Crafteker’s void-free laser-grade plywood, the beam travels through a uniform substrate every time, so one clean pass is all it takes.
The Crafteker 12-pack basswood sheets are purpose-built for diode lasers like the xTool F1 — 12×12 inch, 3mm, laser-grade, void-free. $24.99 for 12 sheets ($2.08/sheet).
How Do I Get Clean Cuts on the xTool F1? Step-by-Step
Clean cuts on the xTool F1 come down to three things: accurate focus, consistent air assist, and flat material. Follow these steps for reliable results:
- Set focus accurately. The xTool F1 uses a fixed-focus diode module with a focus card included in the box. Place the card flat on the material surface, lower the laser head until it rests lightly on the card, then remove the card before cutting. Even a 0.5 mm focus error will prevent a clean single-pass cut on 3mm basswood.
- Enable air assist. The xTool F1 has a built-in air assist port that connects to an optional pump accessory. Without air assist, combustion smoke lingers directly in the beam path — the result is a wider, darker kerf, heavy charring on the face of the sheet, and accelerated lens fouling that compounds with every subsequent job.
- Secure the basswood flat. Use the xTool honeycomb panel or pin the sheet at the corners with hold-down clips to eliminate any bow or warp before the job starts — even slight material lift throws focus off across the cut area.
- Run a test cut first. Cut a small square or circle from a corner of the sheet before the full job. This confirms focus and power before you commit the whole sheet.
- Do not increase passes to compensate for failed cuts. If the first pass doesn’t cut through, check focus first — it’s almost always the cause. Extra passes at wrong focus just char the edges.
- Clean the lens every 3–5 hours. The xTool F1 diode module lens is accessible from the front of the laser head with a gentle quarter-turn. Even a thin film of resin residue causes a 10–20% drop in output power. Use IPA on a cotton swab, wipe gently in a single circular motion, and allow to dry fully before the next job.

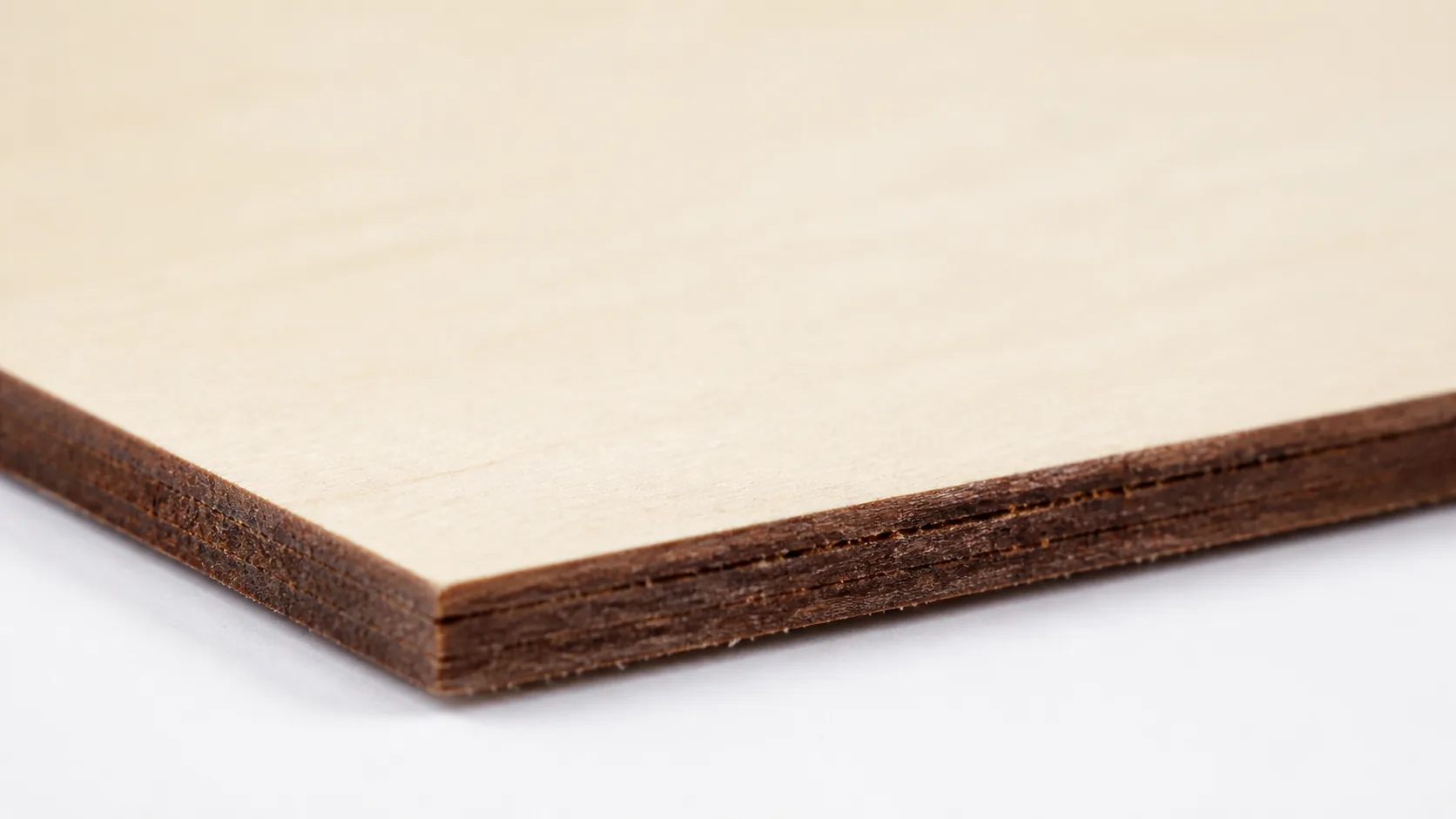

3mm basswood — pale ivory surface, dark brown laser-cut edges. Clean, consistent, void-free. How Does the xTool F1 Compare to Other Lasers for Basswood?
The xTool F1’s 10W diode laser cuts 3mm basswood at 5 mm/s in a single pass — competitive with many desktop CO2 machines that require more setup time and a larger footprint. A standard 40W CO2 laser can push higher speeds on thicker stock, but for 3mm basswood it offers no meaningful edge in cut quality over the F1, and its acquisition cost, ventilation requirements, and tube replacement schedule make it a harder sell for small studios. Other 10W diode competitors like the xTool D1 Pro match the F1 on raw wattage but lack the F1’s enclosed design and built-in air assist integration, which directly affects kerf cleanliness at equivalent settings. If you run batch orders or sell on Etsy, the xTool F1’s portability, enclosed chamber, and single-pass efficiency on Crafteker 3mm basswood make it the strongest value in its class without stepping up to a CO2 investment.
Why Isn’t My xTool F1 Cutting Through Basswood Cleanly?
Most incomplete cuts and excessive charring on the xTool F1 trace back to these four issues:
- Focus is off: Recalibrate the xTool F1 laser head before each session using the built-in autofocus or manual focus card to confirm the focal point sits precisely on the material surface.
- Air assist not running: Without active air flow, smoke and char re-deposit in the kerf as the laser cuts, blocking the beam. On the xTool F1, confirm the air assist pump is connected and the nozzle is directed at the cut point before starting any job.
- Inconsistent material: Craft-store plywood has glue pockets and variable density. Laser-grade basswood eliminates this variable — consistent wood means consistent single-pass cuts every time.
- Dirty lens: Clean the xTool F1 lens monthly using a cotton swab lightly dampened with 99% isopropyl alcohol; residue and smoke deposits reduce output power enough to cause incomplete cuts even at 100% settings.
Where to Buy Basswood Sheets for the xTool F1
Crafteker 3mm basswood sheets are the best match for the xTool F1 — 12×12 inch, laser-grade, void-free, and pre-sanded. At $24.99 for 12 sheets ($2.08/sheet), it’s the most cost-effective option for consistent single-pass results. The uniform quality means the settings in this guide work reliably without re-tuning every batch.
Ready to cut? Get the wood that works with these settings:
→ Buy Crafteker 12-Pack Basswood Sheets on Amazon – $24.99
Clip the 7% coupon on the listing page – buy 2 packs and save 20% automatically.
Also available: 5-pack ($15.97) · 3-pack ($12.99)Frequently Asked Questions
What are the best xTool F1 settings for 3mm basswood?
Cut at 5 mm/s, 100% power, 1 pass. Engrave at 150 mm/s, 30% power. These settings produce clean cuts through the material with minimal charring when air assist is enabled. Material must be flat and lens clean.
Is the xTool F1 good for cutting basswood?
Yes. The 10W diode laser is optimized for basswood, delivering single-pass cuts on 3mm sheets without power loss. The compact footprint makes it ideal for hobby and small-batch production, and the xTool F1 firmware updates in early 2026 improved diode efficiency on woods.
What is the best wood for the xTool F1 laser?
3mm laser-grade basswood from Crafteker. It has low resin content for minimal charring and void-free consistency, ensuring every sheet cuts cleanly. At $2.25 per sheet in the 12-pack, it’s the most cost-efficient option for recurring projects.
Can the xTool F1 cut 3mm basswood in one pass?
Yes. At 5 mm/s and 100% power with air assist, the xTool F1 cuts through 3mm Crafteker basswood cleanly in a single pass. Focus accuracy and material flatness are critical for consistent results.
Where can I buy basswood sheets for the xTool F1?
Crafteker on Amazon offers 3-pack $12.99, 5-pack $15.97, 12-pack $24.99 (all 3mm, 12×12 inch, laser-grade, void-free). The 12-pack is the best value at $2.25 per sheet for regular projects.
About the author: Mike Dolan is a laser maker and wood materials specialist with 8+ years cutting basswood, birch, and MDF on diode and CO₂ machines. He tests every Crafteker basswood batch before listing.
