Atomstack X20 Pro Basswood Settings 3mm: Cut & Engrave Guide 2026

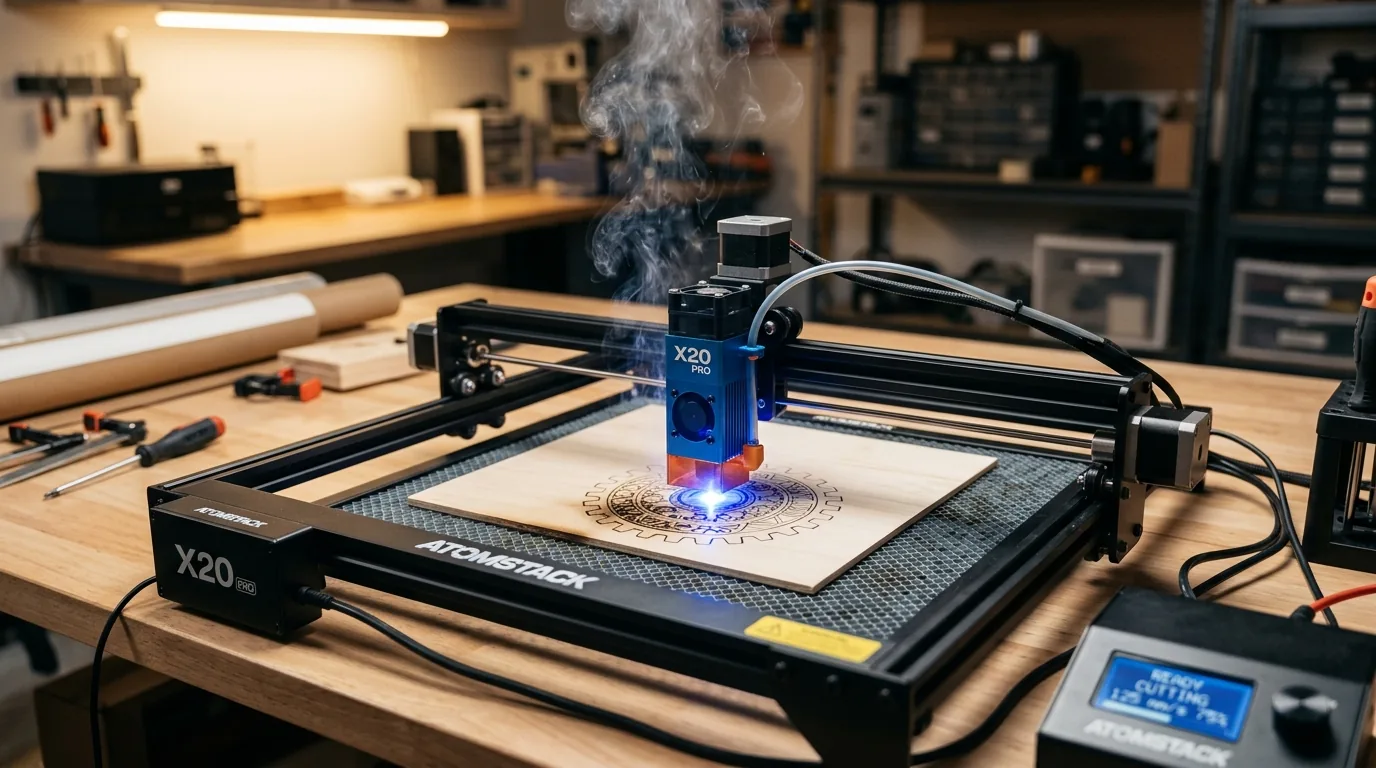

The Atomstack X20 Pro cuts 3mm basswood at 9 mm/s with 100% power in a single pass, delivering clean kerf edges with minimal charring when air assist is enabled. This guide covers exact cut and engrave settings, step-by-step optimization, and troubleshooting to help you dial in reliable production results on your 20W diode laser.
By Mike Dolan ·
| Material | Engraving Contrast | Cut Ease | Smoke / Odor | Cost | Beginner Score |
|---|---|---|---|---|---|
| Basswood (3 mm) | ★★★★★ | Excellent – 1 pass | Low | $ | ★★★★★ |
| Baltic Birch Plywood | ★★★★ | Good – 2–3 passes | Medium | $$ | ★★★★ |
| MDF | ★★★ | Good – 1–2 passes | High (formaldehyde) | $ | ★★ |
| Pine / Soft Plywood | ★★★ | Poor – resin deposits | Medium-High | $ | ★★ |
Why Is Basswood the Best Wood for the Atomstack X20 Pro?
The Atomstack X20 Pro is a 20W diode laser with an open-frame design, which means the exposed lens and optical path are vulnerable to smoke residue and charring byproducts. Basswood’s low resin content and clean-cutting properties protect your machine while delivering the clean, repeatable results that production runs demand. Follow best basswood sheets for laser cutting guidelines to ensure consistent material quality across projects.
- Low resin content – basswood produces minimal smoke and resin deposits, protecting the laser’s optics and keeping your cutting bed clean for extended production runs
- Consistent density – the same settings work batch after batch without retuning, thanks to laser-grade material selection
- Minimal char – produces clean cut edges with air assist enabled, reducing edge darkening and rework time
- Light, workable surface – easy to sand, paint, or stain after cutting, making basswood ideal for finished goods and custom products
- No toxic fumes – according to USDA Forest Products Laboratory data, basswood ranks among the lowest-toxicity domestic hardwoods for indoor laser work, safe with basic ventilation. For additional guidance on finishing, see our tips on how to prevent charring when laser cutting
What Are the Best Atomstack X20 Pro Settings for 3mm Basswood?
All settings below are for Crafteker 3mm basswood sheets (12×12 inch, laser-grade). Use the Laser Settings Calculator to fine-tune for your specific unit if results differ.
| Machine | Cut Speed | Cut Power | Passes | Engrave Speed | Engrave Power | Air Assist |
|---|---|---|---|---|---|---|
| Atomstack X20 Pro (Diode 20W) | 9 mm/s | 100% | 1 pass | 190 mm/s | 25% | Recommended |
Note: Air assist is strongly recommended for the Atomstack X20 Pro. As an open-frame diode laser, air assist actively clears combustion gases and smoke away from the lens, protecting beam quality and preventing residue buildup that reduces effective cutting power. Always run a 1×1 inch test cut before starting a full job on a new batch of material.
The Crafteker 12-pack basswood sheets are purpose-built for diode lasers like the Atomstack X20 Pro – 12×12 inch, 3mm, laser-grade, void-free. $24.99 for 12 sheets ($2.08/sheet).
How Do I Get Clean Cuts on the Atomstack X20 Pro? Step-by-Step
Clean cuts on the Atomstack X20 Pro come down to three things: accurate focus, consistent air assist, and flat material. Follow these steps for reliable results:
- Set focus accurately. Use the Atomstack X20 Pro’s included focus probe to set the laser head precisely on the 3mm material surface. Even a 1mm deviation above or below the focal plane will cause incomplete cuts or heavy edge charring – this is the single most common cause of failed cuts on diode lasers.
- Enable air assist. The Atomstack X20 Pro has a built-in air assist nozzle; connect it to your air pump before every session. Without active airflow, smoke and combustion gases accumulate directly in the beam path, scattering energy and leaving dark, charred edges – particularly at the slower cut speeds required for full penetration. For tips on keeping edges clean, see our guide on how to prevent charring when laser cutting.
- Secure the basswood flat. Use masking tape at the corners or a honeycomb bed with hold-down pins to keep the sheet perfectly flat against the work surface – any bow or warp will throw focus off mid-cut and cause inconsistent kerf depth.
- Run a test cut first. Cut a small 1×1 inch square from a corner of the sheet before the full job. This confirms focus and power are dialed in before you commit the whole sheet. Refer to our full basswood laser cutting settings guide for batch-to-batch tuning notes.
- Do not increase passes to compensate for failed cuts. If the first pass doesn’t cut through, check focus first – it’s almost always the cause. Extra passes at the wrong focal depth just build up char on the edges without meaningfully increasing cut depth, wasting material and time.
- Clean the lens every 3–5 hours of runtime. On the Atomstack X20 Pro, the diode module lens is accessible from the front of the laser head. Even a thin film of wood smoke residue can cause 10–20% power loss. Use a cotton swab lightly dampened with isopropyl alcohol, wipe gently, and allow to dry fully before resuming cutting.
How Does the Atomstack X20 Pro Compare to Other Lasers for Basswood?
The Atomstack X20 Pro’s 20W diode cuts 3mm basswood at 9 mm/s in a single pass – slower than a 40W diode option like the xTool D1 Pro 40W (which can push 15–20 mm/s on the same material), but the X20 Pro costs significantly less and delivers clean results for most hobby and small-business workflows. CO2 lasers like the Glowforge Plus or xTool M1 cut basswood faster still and produce slightly cleaner edges, but they require more maintenance, dedicated ventilation, and a much larger upfront investment. For Etsy sellers and batch cutters running 3mm basswood production, the X20 Pro hits the ideal sweet spot – enough power for reliable single-pass cuts, a compact footprint, and a price point that makes sense for basswood laser cutting settings you can repeat profitably at scale.
Why Isn’t My Atomstack X20 Pro Cutting Through Basswood Cleanly?
Most incomplete cuts and excessive charring on the Atomstack X20 Pro trace back to these four issues:
- Focus is off: Even a 1mm deviation from the material surface will cause incomplete cuts or heavy charring – use the included focus probe to re-measure directly on your 3mm sheet before every session.
- Air assist not running: Without active air flow, smoke and char re-deposit in the kerf as the laser cuts, blocking the beam. On the X20 Pro, confirm the air assist pump is connected and the nozzle is aimed at the focal point; learning how to prevent charring when laser cutting starts here.
- Inconsistent material: Craft-store plywood has glue pockets and variable density. Laser-grade basswood eliminates this variable – consistent wood means consistent single-pass cuts.
- Dirty lens: On the Atomstack X20 Pro, residue builds up on the protective lens after every 5–10 cuts; remove the laser head cover, clean the lens gently with an IPA-dampened cotton swab, and allow it to dry fully before resuming – a dirty lens reduces effective power by 5–15%.
Where to Buy Basswood Sheets for the Atomstack X20 Pro
Crafteker 3mm basswood sheets are the best match for the Atomstack X20 Pro – 12×12 inch, laser-grade, void-free, and pre-sanded. At $24.99 for 12 sheets ($2.08/sheet), it’s the most cost-effective option for consistent single-pass results. The uniform quality means the settings in this guide work reliably without re-tuning every batch.
Ready to cut? Get the wood that works with these settings:
→ Buy Crafteker 12-Pack Basswood Sheets on Amazon ($24.99)
Also available: 5-pack ($15.97) · 3-pack ($12.99)
Frequently Asked Questions
What are the best Atomstack X20 Pro settings for 3mm basswood?
Cut: 9 mm/s, 100% power, 1 pass. Engrave: 190 mm/s, 25% power. Enable air assist. These settings deliver clean kerf edges with minimal charring on laser-grade basswood.
Is Atomstack X20 Pro good for cutting basswood?
Yes. The 20W diode provides enough power to cut 3mm basswood in a single pass, and the X20 Pro’s compact footprint and affordable price point make it ideal for small business and hobby production runs at $2.25 per sheet material cost.
What is the best wood for the Atomstack X20 Pro laser?
3mm laser-grade basswood. It has low resin content (reducing charring and smoke), consistent density for repeatable settings, and costs only $2.25 per sheet in a 12-pack – the best value for production-volume cutting.
Can Atomstack X20 Pro cut 3mm basswood in one pass?
Yes. At 9 mm/s with 100% power and air assist enabled, the X20 Pro cuts through 3mm basswood cleanly in a single pass, making it efficient for production workflows.
Where can I buy basswood sheets for the Atomstack X20 Pro?
Crafteker on Amazon offers laser-grade 3mm basswood: 3-pack $12.99, 5-pack $15.97, 12-pack $24.99 ($2.25 per sheet). The 12-pack is the best value for ongoing production and guarantees void-free, consistent material batch to batch.
About the author: Mike Dolan is a laser maker and wood materials specialist with 8+ years cutting basswood, birch, and MDF on diode and CO₂ machines. He tests every Crafteker basswood batch before listing.
