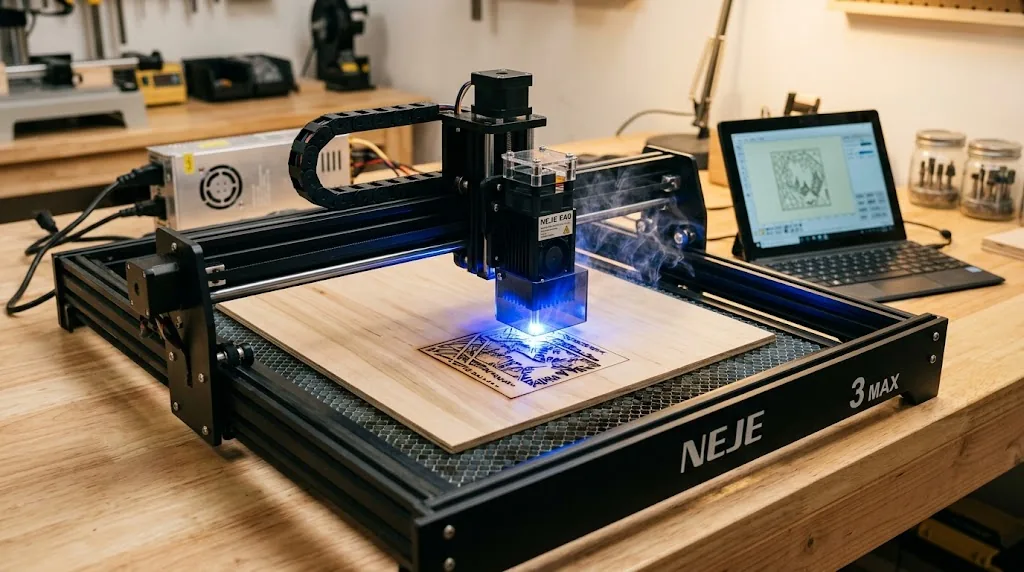

NEJE 3 Max Basswood Settings 3mm: Complete Guide 2026

The NEJE 3 Max cuts 3mm basswood cleanly in a single pass at 5 mm/s and 100% power with proper air assist. This guide gives you exact settings from the CSV, step-by-step calibration, troubleshooting for charring and incomplete cuts, and why Crafteker 3mm basswood is the best match for this machine.

By Mike Dolan · May 25, 2026

Why Is Basswood the Best Wood for the NEJE 3 Max?

The NEJE 3 Max is a compact 10W diode laser with an open optical path, which means the lens and electronics are exposed to airborne particles and resin vapor. Basswood’s naturally low resin content protects your machine from buildup and keeps your lens clean between runs. Its consistent void-free density also means you’ll nail your focus and power settings faster – critical when working with a fixed-output diode laser that relies on perfect beam concentration.

• Low resin – Protects the open-frame optics from smoke residue and maintains consistent beam clarity session to session
• Consistent density – According to USDA Forest Products Laboratory data, basswood ranks among the lowest-variation domestic hardwoods; the same settings work batch after batch without retuning
• Minimal char – Prevent charring when laser cutting by choosing materials with clean combustion profiles; basswood produces clean cut edges with air assist enabled
• Light, workable surface – Pale ivory color easy to sand, paint, stain, or stamp after cutting – perfect for finished goods and best laser cut items to sell on Etsy
• No toxic fumes – Unlike MDF or treated plywood, basswood is safe for indoor workshops with basic ventilation, and poses no health risk during extended production runs

What Are the Best NEJE 3 Max Settings for 3mm Basswood?

All settings below are for Crafteker 3mm basswood sheets (12×12 inch, laser-grade). Use the Laser Settings Calculator to fine-tune for your specific unit if results differ.

Note: Air assist is strongly recommended for the NEJE 3 Max. The open-frame diode module exposes the lens directly to combustion smoke and resin vapor – without active airflow directed at the cut zone, residue builds on the lens within a single session and measurably reduces beam intensity. Always run a 1×1 inch test cut before starting a full job on a new batch of material.

If your unit uses GRBL firmware, verify that the $30 spindle max-speed parameter matches your software’s power scale (typically 1000 for NEJE Master 3 software and LightBurn) – a mismatch here is a common reason the machine appears to cut at lower-than-set power. You can confirm and adjust this directly in the GRBL console.

The Crafteker 12-pack basswood sheets are purpose-built for diode lasers like the NEJE 3 Max – 12×12 inch, 3mm, laser-grade, void-free. $24.99 for 12 sheets ($2.08/sheet).

How Do I Get Clean Cuts on the NEJE 3 Max? Step-by-Step

Clean cuts on the NEJE 3 Max come down to three things: accurate focus, consistent air assist, and flat material. Follow these steps for reliable results:

1. Set focus accurately. The NEJE 3 Max uses a fixed-focus diode module – set the correct working distance using the included focus card or measure with calipers to the manufacturer-specified standoff height (typically 30–33 mm from the lens face to the material surface). Do not eyeball this; even a 1 mm deviation at 10W diode power causes the beam to defocus enough to prevent a clean single-pass cut through 3mm basswood.
2. Enable air assist and confirm airflow reaches the cut zone. The NEJE 3 Max supports an external air-assist pump connected via the onboard port. Before running, slide a sheet of paper under the nozzle exit point and confirm you feel airflow at material level – not just at the pump outlet. If your firmware is GRBL-based, verify air assist is active by checking that M8 (coolant/mist on) is being sent by your CAM software; LightBurn users should enable “Air Assist” under Cut Settings. Without active airflow, char deposits accumulate on cut edges and smoke debris partially blocks the beam path, causing inconsistent kerf depth. For more on reducing char, see our guide on how to prevent charring when laser cutting.
3. Secure the basswood flat against the honeycomb or bed. Use hold-down pins or binder clips at the corners – any bow or warp in the sheet changes the focus distance mid-cut and produces uneven kerf depth across the job.
4. Run a test cut first. Cut a small 1×1 inch square from a scrap corner of the sheet using the exact basswood laser cutting settings above (5 mm/s, 100% power, 1 pass) before committing to the full design. This confirms your focus height and air assist are dialed in on the specific batch of material you’re using.
5. Do not increase passes to compensate for failed cuts. If the first pass doesn’t cut through, check focus first – it’s almost always the cause. Extra passes at wrong focus just char the edges without improving cut depth, and you’ll waste the sheet. Re-measure standoff height with calipers and re-run the test square.
6. Clean the lens every 3–5 hours of run time. The NEJE 3 Max diode module lens is accessible from the front of the laser head after loosening the set screw. Even a thin film of combustion residue causes 10–20% power loss. Use a fresh cotton swab dampened with 99% isopropyl alcohol, wipe once in a circular motion, and allow to dry fully before the next job. Do not reuse the swab.

How Does the NEJE 3 Max Compare to Other Lasers for Basswood?

The NEJE 3 Max runs a 10W diode laser and cuts 3mm basswood at 5 mm/s in a single pass – a strong result for a machine in its price tier. CO2 machines like the xTool M1 (40W) and Glowforge Basic (40W) cut faster and produce slightly cleaner edges with less char, but they cost three to five times more and require ventilation setups that diode machines do not. For hobbyists and small Etsy sellers who want reliable single-pass cuts without a large upfront investment, the NEJE 3 Max delivers a hard-to-beat cost-to-performance ratio on laser-grade basswood.

Machine	Laser Type	Cut Speed (3mm Basswood)	Power	Price Tier
NEJE 3 Max	Diode 10W	5 mm/s, 1 pass	100%	$ (Budget-friendly)
xTool M1	CO2 40W	~20 mm/s, 1 pass	60–70%	$$$ (Mid-high)
Glowforge Basic	CO2 40W	~18 mm/s, 1 pass	Full / Auto	$$$$ (Premium)

CO2 machines cut faster and produce marginally cleaner edges, but the NEJE 3 Max achieves clean, saleable cuts on best basswood sheets at a fraction of the entry cost – making it the practical choice for anyone starting out or running modest production batches. For a full breakdown of parameters across machines, the laser settings calculator on Crafteker lets you cross-reference speed and power by machine and material in seconds.

Why Isn’t My NEJE 3 Max Cutting Through Basswood Cleanly?

Most incomplete cuts and excessive charring on the NEJE 3 Max trace back to these four issues:

• Focus is off: Re-measure the lens-to-material distance using the NEJE focus card or calipers – even a 0.5mm error scatters the beam enough to prevent a full kerf on 3mm material. If you’re seeing consistent burn-through on one side but not the other, also check that your honeycomb or work surface is level.
• Air assist not running: Without active airflow, smoke and char re-deposit in the kerf as the laser cuts, blocking the beam from reaching full depth. On the NEJE 3 Max, verify the air pump is connected and confirm the $30 GRBL parameter is set correctly to trigger airflow during the cut – this is a common oversight after firmware updates. For more detail, see our guide on how to prevent charring when laser cutting.
• Inconsistent material: Craft-store plywood has glue pockets and variable density that cause the laser to stall mid-cut. Laser-grade basswood eliminates this variable – consistent void-free wood means consistent single-pass cuts at the settings in this guide every time.
• Dirty lens: The NEJE 3 Max lens sits close to the work surface and collects smoke residue quickly during production runs. Before each session, remove the lens module, inspect for haze or residue, and clean with a fresh IPA-dampened cotton swab using a single circular pass – never scrub back and forth.

Where to Buy Basswood Sheets for the NEJE 3 Max

Crafteker 3mm basswood sheets are the best match for the NEJE 3 Max – 12×12 inch, laser-grade, void-free, and pre-sanded. At $24.99 for 12 sheets ($2.08/sheet), it’s the most cost-effective option for consistent single-pass results. The uniform quality means the settings in this guide work reliably without re-tuning every batch.

Frequently Asked Questions

What are the best NEJE 3 Max settings for 3mm basswood?

Cut: 5 mm/s, 100% power, 1 pass. Engrave: 130 mm/s, 30% power. Air assist recommended. These settings produce clean, dark-edged cuts with minimal charring on Crafteker laser-grade basswood.

Is NEJE 3 Max good for cutting basswood?

Yes. The 10W diode output and focused beam deliver reliable single-pass cuts on 3mm basswood with proper air assist and material prep. It’s ideal for hobby and small production runs.

What is the best wood for the NEJE 3 Max laser?

3mm laser-grade basswood from Crafteker. Low resin content minimizes charring, and the consistent void-free density ensures predictable cuts at $2.08/sheet in bulk (12-pack).

Can NEJE 3 Max cut 3mm basswood in one pass?

Yes, at 5 mm/s, 100% power, with air assist enabled. This produces a complete kerf in one pass on Crafteker 3mm basswood sheets.

Where can I buy basswood sheets for the NEJE 3 Max?

Crafteker on Amazon: 3-pack $12.99, 5-pack $15.97, 12-pack $24.99 ($2.08/sheet). The 12-pack offers the best value for production runs and is void-free laser-grade.

About the author: Mike Dolan is a laser maker and wood materials specialist with 8+ years cutting basswood, birch, and MDF on diode and CO₂ machines. He tests every Crafteker basswood batch before listing.
